40 Ft Converted Shipping Container Home — 2 Rooms

About the 40 Ft Converted Shipping Container Home — 2 Rooms

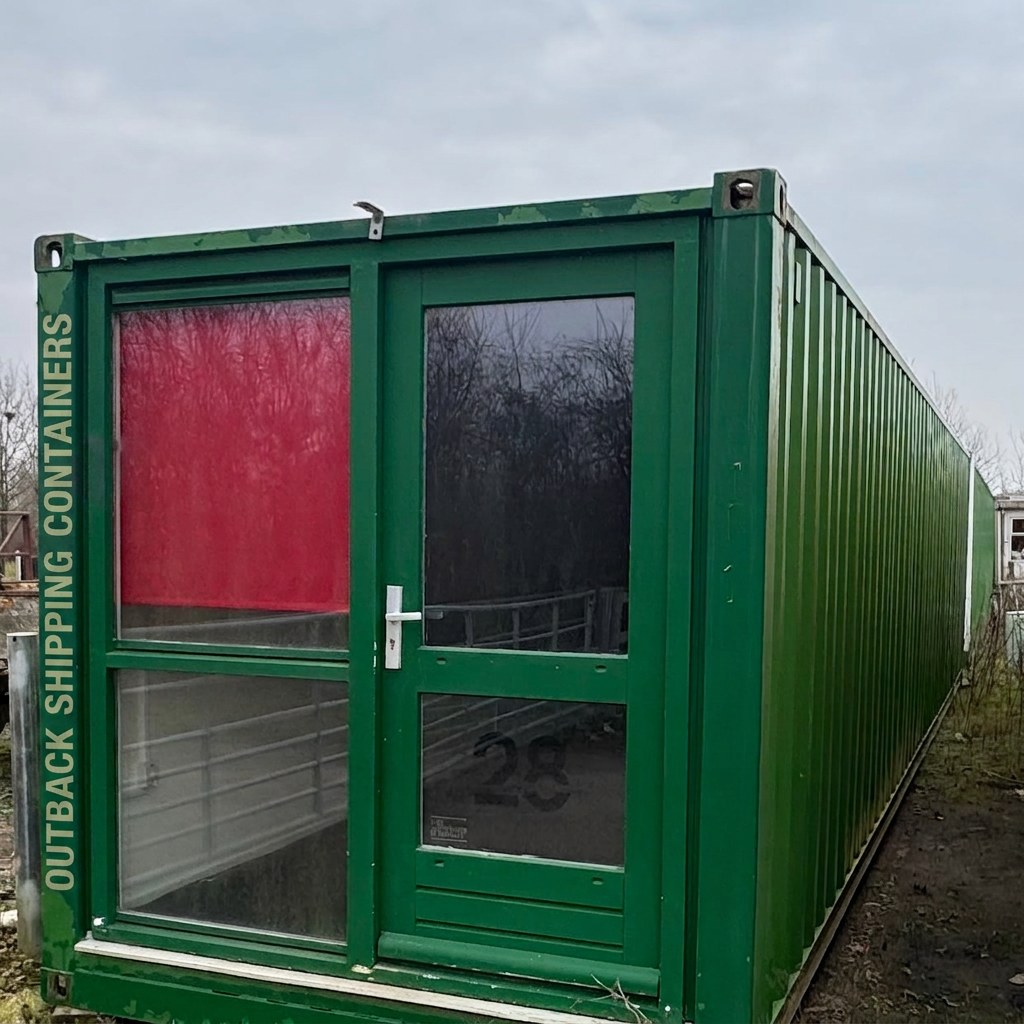

The 40 Ft Converted Shipping Container Home — 2 Rooms is a HUD-certified residence built by Outback Shipping Containers. Residential framing, insulation, electrical, plumbing and finishes are installed in the factory and inspected before dispatch.

The home uses the recorded modular configuration, with reinforced residential openings and factory-installed framing, insulation, electrical, plumbing and finishes.

Features & Inclusions

• • Open-plan or partitioned layout to suit site office needs
• • Anti-vandal steel doors and security shutters
• • Insulated walls, roof and floor for year-round use
• • Electrics pre-wired with sockets and lighting
• • Steel skid base for forklift, crane or flatbed transport

Specifications

Catalog Model Number

OSC-OF-40-A870FA45

SKU

CDUR-D2

Product Class

Container Home

Condition

Used

Exterior Length

40'0"

Exterior Width

8'0"

Exterior Height

8'0"

Frame / Structure

Steel cargo-container or modular frame; alterations and reinforcement vary by model

Wall Construction

Steel exterior shell; interior wall build-up is model-specific

Roof Construction

Steel roof assembly; penetrations and added roof systems are listed when fitted

Floor Construction

Finished floor assembly varies with the selected build

Electrical Supply Phase

Single-phase (1-phase)

Required Voltage

220V

Electrical Service

Final service, panel, circuit, outlet, lighting and HVAC loads are documented on the approved build sheet; site connection is by locally licensed trades

Wind Zone

Zone II (Zone 2)

Wind Rating

120 mph (miles per hour), 3-second gust

HUD Code Reference

24 CFR 3280 — Manufactured Home Construction and Safety Standards; wind provisions: 24 CFR 3280.305

Code Scope

This container home is HUD certified and built to the HUD Manufactured Home Construction and Safety Standards. HUD wind zones apply to HUD-code manufactured homes; the listed 3-second-gust speed is a separate specification, not a direct equivalence to HUD zone criteria.

Coastal Installation

For hurricane-prone coastal sites, confirm the local required design wind speed, exposure and applicable wind zone before ordering; some locations require Zone III or higher site-specific loads.

Foundation & Anchorage

Site-specific foundation, tie-downs and continuous structural connections must be designed for local wind loads, uplift and overturning by a licensed professional.

Placement

Prepared, level foundation and delivery or crane access required

Permits & Local Approval

Buyer must confirm local permits, setbacks, foundation and utility requirements before delivery

Utility Connections

Final site connections must be completed and inspected by locally licensed trades where required

Structural Warranty

15+ year structural warranty

Delivery

Free Flatbed Delivery with Crane Set (1–3 + 7–12 business days) · Expedited Flatbed Delivery with Crane Set $1,500 per order (1–3 + 3–5 business days)

Delivery Estimate

About 8–15 business days (Free Flatbed Delivery with Crane Set)

Delivery method

Flatbed truck with crane

Straight approach (min.)

At least 80 ft

Access width (min.)

At least 12 ft

Overhead clearance (min.)

At least 15 ft along the route

Drop zone / setup area

crane pad 20 x 30 ft, level and firm, within 25 ft of the set point; no power lines within 20 ft of the lift path

Delivery note

Delivered on a 48–53 ft flatbed (about 75 ft overall) and set by crane, which Outback coordinates. Provide a level, firm 20 x 30 ft crane pad within 25 ft of the set point, with no power lines within 20 ft of the lift path.
