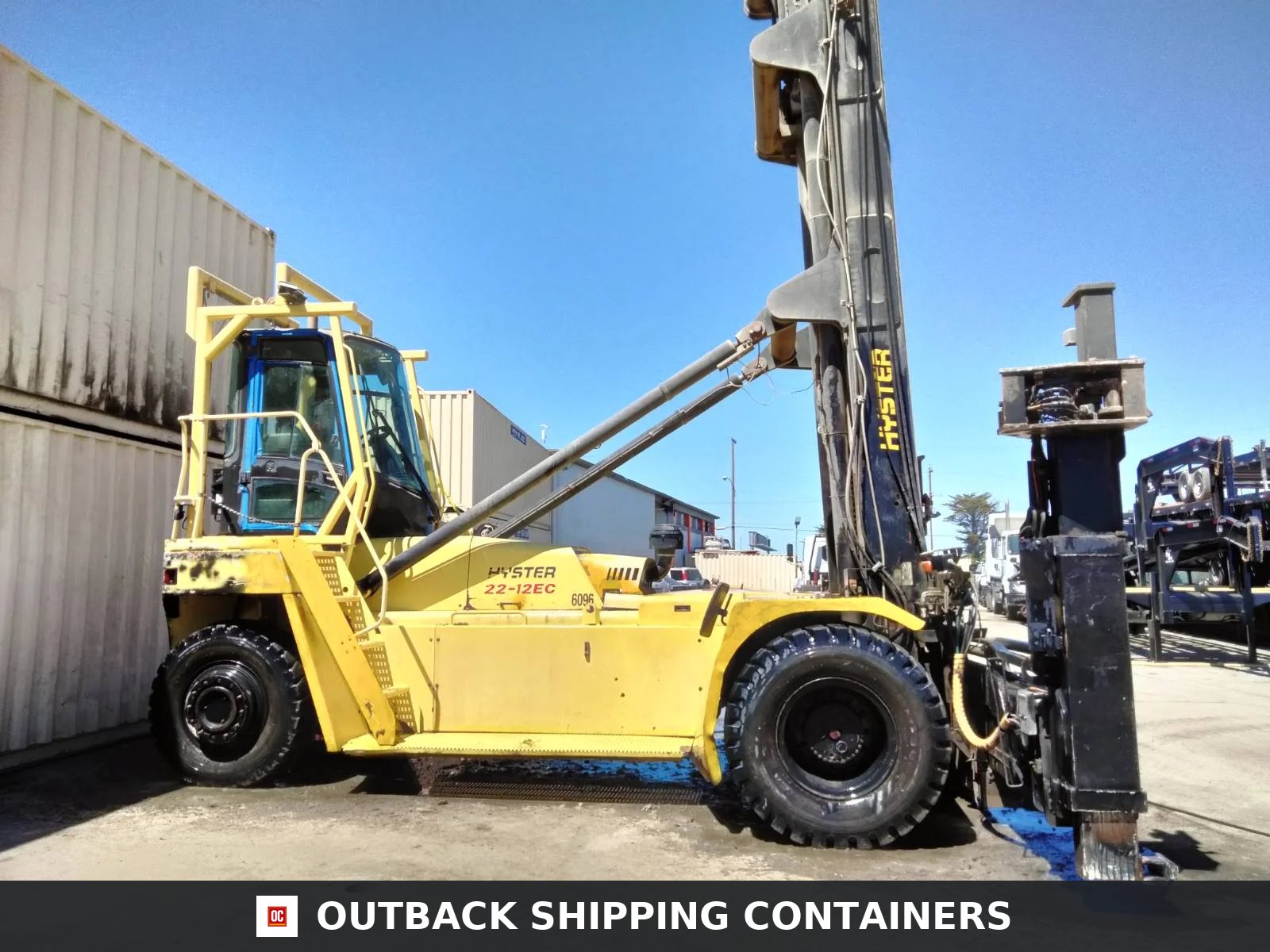

Hyster H22XM-12EC 9-High Stacker Container Handler

About the Hyster H22XM-12EC 9-High Stacker Container Handler

Hyster H22XM-12EC 9-High Stacker Container Handler is a used container handling equipment engineered by Outback Shipping Containers for container handling, transport, and material movement. Every unit is inspected before dispatch. Every unit is inspected, certified, and prepared to deliver reliable performance across residential, commercial, and industrial applications.

Hyster H22XM-12EC 9-High Stacker Container Handler is commercial-grade container support equipment inspected for frame integrity, operating condition, tire or running-gear condition where applicable, and suitability for container transport or handling work. Key mechanical and structural details are verified before dispatch.

Features & Inclusions

• • Cummins diesel engine — serviced and inspected
• • 9,000 kg (≈19,800 lb) rated lift capacity
• • Telescoping top-lift spreader with side-shift + rotate
• • Handles 20ft AND 40ft ISO shipping containers
• • Double-stacking / up-to-9-high configuration
• • Enclosed operator cab with full instrumentation
• • Reinforced mast and boom
• • Full pre-delivery service, safety and operational inspection

Specifications

Catalog Model Number

OSC-TR-GEN-D20B347F

SKU

OC-EQ-HYSTER-H22XM

Product Class

Machine

Condition

Used

Catalog Model Number

OSC-TR-GEN-D20B347F

Model

Hyster H22XM-12EC

Engine

Cummins diesel

Condition

Used — inspected & serviced

Overall Length

Approx. 11'0"

Overall Width

Approx. 4'6"

Overall Exterior Height

Approx. 8'0"

Deck / Load Length

Approx. 11'0"

Deck / Load Width

Approx. 4'6"

Interior Height

Not applicable — industrial equipment

Payload Capacity

9,000 kg (~19,800 lb)

Electrical Supply Phase

Not applicable — no AC electrical supply recorded for this unit

Onboard Power

Not fitted — this unit carries no interior electrical system. Onboard 12V power, interior lighting and 120V outlets can be added on request.

Engine

Cummins diesel

Attachment

Top-lift spreader (side-shift + rotate)

Compatible Containers

20ft & 40ft ISO

Delivery

Heavy-haul delivery

Cab

Enclosed, full instrumentation

Stacking Height

Up to 9 containers high

System Type

Hydraulic — engine-driven

How It Works

The diesel engine drives a hydraulic pump. The operator’s levers send pressurized oil to the lift, tilt, spreader, side-shift and rotate cylinders, so lifting power comes from the engine, not a battery

Battery

12V starting/electrical battery only — not used to power the lift

Fuel

Diesel

Hydraulic Maintenance

Check hydraulic fluid daily, inspect hoses, chains and cylinders; service filters per hour-meter schedule

Electrical / Road Wiring

Connector, lighting, brake and onboard-power details shown above are limited to the stored unit record; verify fitted equipment before towing or service

Tow / Transport Match

Confirm carrier capacity and loading method before dispatch

Pre-Use Check

Verify tires, wheel fasteners, lights, brakes, breakaway system and load securement before travel

Lift Capacity

9,000 kg (~19,800 lb)

Delivery method

Permitted oversize lowboy

Straight approach (min.)

At least 120 ft

Access width (min.)

At least 16 ft

Overhead clearance (min.)

At least 16 ft along the route

Drop zone / setup area

30 ft clear, level ramp-off area behind the trailer

Delivery note

Delivered as a permitted oversize load on a removable-gooseneck lowboy and driven off on site.
