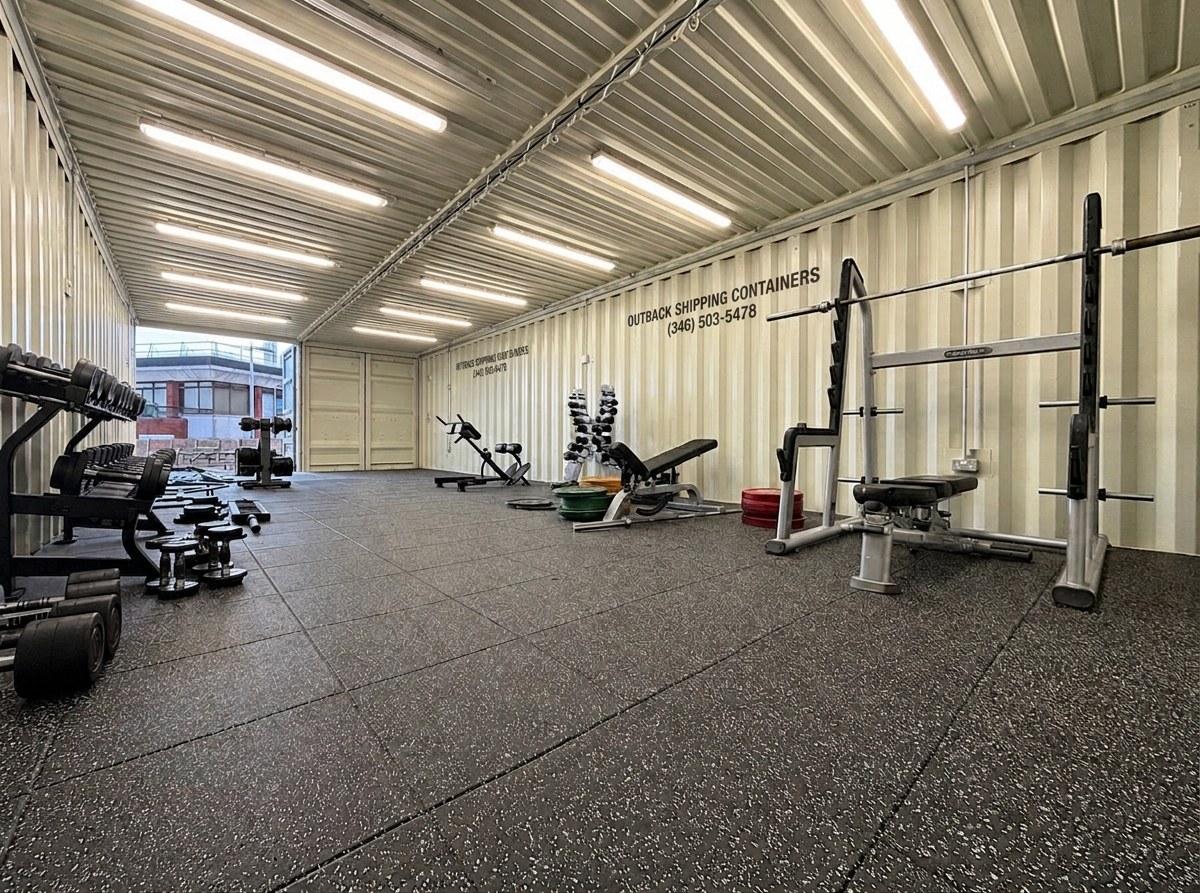

40x16ft — CUSTOM — Shipping Container Conversion — GYM — Portable Space — No 1004

About the 40x16ft — CUSTOM — Shipping Container Conversion — GYM — Portable Space — No 1004

The 40x16ft — CUSTOM — Shipping Container Conversion — GYM — Portable Space — No 1004 is a HUD-certified residence built by Outback Shipping Containers. Residential framing, insulation, electrical, plumbing and finishes are installed in the factory and inspected before dispatch.

The home uses the recorded modular configuration, with reinforced residential openings and factory-installed framing, insulation, electrical, plumbing and finishes.

Features & Inclusions

• • Partition wall & Internal Door Installs
• • Installation of new fully functioning Kitchenettes with hot water facilities, basin, work top surface & storage
• • New Toilets, Wash basins & Water heater installations
• • New Window + Anti vandal shutter Installs
• • New External Door Installs - double doors, single doors, disabled access doors
• • Exterior colour change - provide us with a RAL number & we will do the rest!
• • New LED Lighting Installs
• • Air Conditioning / Heating Unit - Full install

Specifications

Catalog Model Number

OSC-CT-4016-B6D68FA7

SKU

CD-1004

Product Class

Container Home

Condition

Refurbished

Frame / Structure

Steel cargo-container or modular frame; alterations and reinforcement vary by model

Wall Construction

Steel exterior shell; interior wall build-up is model-specific

Roof Construction

Steel roof assembly; penetrations and added roof systems are listed when fitted

Floor Construction

Finished floor assembly varies with the selected build

Electrical Supply Phase

Single-phase (1-phase)

Required Voltage

220V

Electrical Service

Final service, panel, circuit, outlet, lighting and HVAC loads are documented on the approved build sheet; site connection is by locally licensed trades

Wind Zone

Zone II (Zone 2)

Wind Rating

120 mph (miles per hour), 3-second gust

HUD Code Reference

24 CFR 3280 — Manufactured Home Construction and Safety Standards; wind provisions: 24 CFR 3280.305

Code Scope

This container home is HUD certified and built to the HUD Manufactured Home Construction and Safety Standards. HUD wind zones apply to HUD-code manufactured homes; the listed 3-second-gust speed is a separate specification, not a direct equivalence to HUD zone criteria.

Coastal Installation

For hurricane-prone coastal sites, confirm the local required design wind speed, exposure and applicable wind zone before ordering; some locations require Zone III or higher site-specific loads.

Foundation & Anchorage

Site-specific foundation, tie-downs and continuous structural connections must be designed for local wind loads, uplift and overturning by a licensed professional.

Placement

Prepared, level foundation and delivery or crane access required

Permits & Local Approval

Buyer must confirm local permits, setbacks, foundation and utility requirements before delivery

Utility Connections

Final site connections must be completed and inspected by locally licensed trades where required

Structural Warranty

30-day post-delivery inspection warranty; sold as refurbished.

Delivery Estimate

7–21 business days nationwide via flatbed + crane delivery.

Delivery method

Flatbed truck with crane

Straight approach (min.)

At least 80 ft

Access width (min.)

At least 12 ft

Overhead clearance (min.)

At least 14 ft along the route

Drop zone / setup area

crane pad 20 x 30 ft, level and firm, within 25 ft of the set point; no power lines within 20 ft of the lift path

Delivery note

Delivered on a 48–53 ft flatbed (about 75 ft overall) and set by crane, which Outback coordinates; each module arrives as its own truckload. Provide a level, firm 20 x 30 ft crane pad within 25 ft of the set point, with no power lines within 20 ft of the lift path.
