40ft Tilt-Bed Shipping Container Trailer (V2)

About the 40ft Tilt-Bed Shipping Container Trailer (V2)

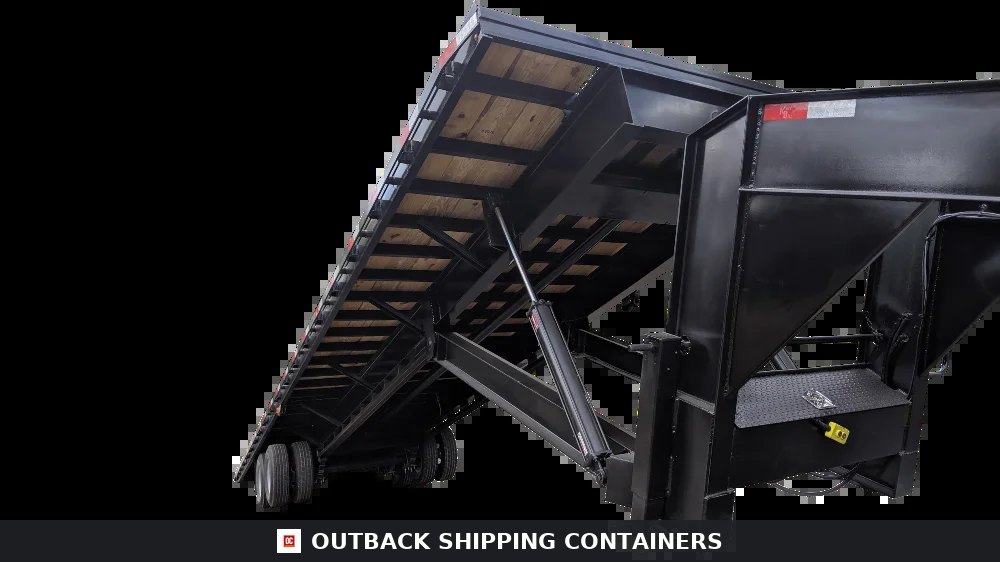

The 40ft Tilt-Bed Shipping Container Trailer V2 is the fastest way to place a 40ft container on a jobsite without hiring a crane. A hydraulic tilt cylinder lowers the deck to ground level, the container slides off under gravity, and the driver leaves — the whole placement takes minutes. Version 2 adds a reinforced steel deck, upgraded twist-locks, and heavier-duty hydraulics for smoother, safer tilting under load. Tandem axles with air brakes and full DOT lighting make it highway-ready, and a fifth-wheel kingpin lets it work with any Class 8 day cab. Ideal for container delivery services, modification shops, and any operation that places containers on customer sites without lifting equipment.

Axles: Tandem. Suspension: Air-ride, reinforced. Brakes: Air brakes with ABS. Floor / deck: Hydraulic tilt, reinforced steel

Features & Inclusions

• • Hydraulic tilt bed — self-offloads containers at ground level
• • Reinforced steel deck with sealed cross-members
• • Four heavy-duty container twist-locks
• • Tandem axles with air brakes and ABS
• • Upgraded hydraulic cylinder (Version 2)
• • Fifth-wheel kingpin coupling
• • Full DOT lighting, mud flaps, and reflectors
• • Compatible with 40ft standard and high-cube containers

Specifications

Condition

new

GVWR

~68,000 lbs

Empty / dry weight

~14,200 lbs

Payload

~53,800 lbs

Axles

Tandem

Suspension

Air-ride, reinforced

Brakes

Air brakes with ABS

Coupler / ball size

2" kingpin (fifth-wheel)

Floor / deck

Hydraulic tilt, reinforced steel

Twist-locks

4 corner-mounted

Tilt actuator

Hydraulic cylinder (upgraded V2)

Warranty

5-year structural

System Type

Self-contained 12V electric-over-hydraulic tilt system

How It Works

An onboard 12V battery powers an electric motor, which drives the hydraulic pump. Pressurized hydraulic oil then extends the cylinder mounted under the deck and raise the front of the bed. As the bed tilts, the rear touches the ground and the container slides off under its own weight while the truck eases forward. Reversing the control retracts the cylinder and lowers the bed for travel.

What Powers the Cylinder

Self-contained electric-over-hydraulic power pack with an onboard 12V deep-cycle battery

Motor & Pump

Onboard 12V DC electric motor and hydraulic power pack; the tow vehicle does not need a wet kit or PTO to operate the tilt

Battery

Dedicated onboard 12V deep-cycle battery; charge fully before operation and maintain it separately from the tow vehicle starting battery

Controls

Wired or pendant control runs the power pack to raise, hold and lower the bed; release the control to stop movement

Container Securing

Twist-locks must be released before tilting and re-engaged before travel

Hydraulic Maintenance

Keep the battery charged and inspect its terminals and cables. Check hydraulic fluid level and hoses/fittings for leaks before each use; keep the cylinder rod clean; change fluid per service schedule

Operating Area Needed

Firm, level ground with 120 ft of straight clearance for a 40ft container drop and pull-away

Delivery method

Towed

Straight approach (min.)

At least 75 ft

Access width (min.)

At least 12 ft

Overhead clearance (min.)

At least 12 ft along the route

Drop zone / setup area

65 x 12 ft straight, level run to back in and unhitch

Delivery note

Delivered towed behind a tow vehicle; the driver backs it into position and unhitches.
