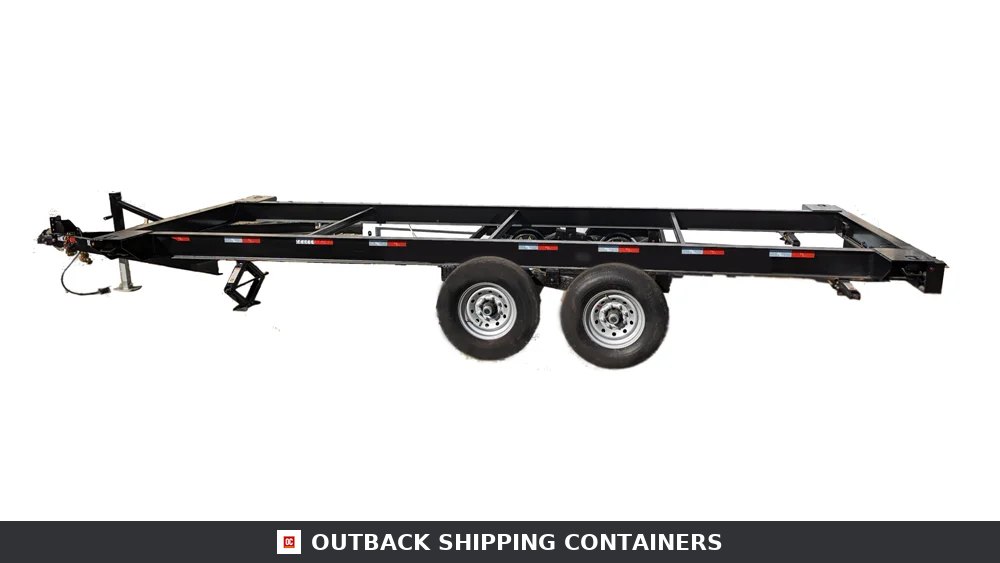

20ft Bumper Pull Container Chassis

About the 20ft Bumper Pull Container Chassis

The 20ft Bumper Pull Container Chassis lets you tow a fully loaded 20ft shipping container without a semi-truck. It bolts onto a standard gooseneck-free bumper hitch on any capable pickup, so contractors, farms, and small logistics operators can move their own containers on their own schedule. Tandem axles with electric brakes deliver stable highway handling; corner twist-locks and pin-in-place safety locks keep the container planted through every turn and stop. An adjustable coupler height matches most tow vehicles, and full DOT lighting keeps you legal on state and interstate roads. Ideal for jobsite moves, mobile storage relocations, emergency deployments, and any operator who wants a semi-free way to transport a 20ft container.

Axles: Tandem. Brakes: Electric brakes on both axles

Features & Inclusions

• • Bumper-pull coupling — no CDL or fifth-wheel required
• • Tandem axles with electric brakes for smooth stops
• • Four heavy-duty container twist-locks + safety pin locks
• • Adjustable coupler height for pickup and medium-duty trucks
• • LED DOT lighting, side reflectors, brake and turn signals
• • Break-away safety brake system
• • Powder-coated steel frame — jobsite tough
• • Compatible with all 20ft ISO shipping containers

Specifications

Condition

new

GVWR

~24,000 lbs

Empty / dry weight

~4,200 lbs

Payload

~19,800 lbs

Axles

Tandem

Brakes

Electric brakes on both axles

Coupler / ball size

Bumper-pull (2-5/16" ball or pintle)

Lights

LED, DOT-compliant

Twist-locks

4 corner + safety pin

Warranty

5-year structural

Delivery method

Towed

Straight approach (min.)

At least 55 ft

Access width (min.)

At least 12 ft

Overhead clearance (min.)

At least 12 ft along the route

Drop zone / setup area

45 x 12 ft straight, level run to back in and unhitch

Delivery note

Delivered towed behind a tow vehicle; the driver backs it into position and unhitches.
