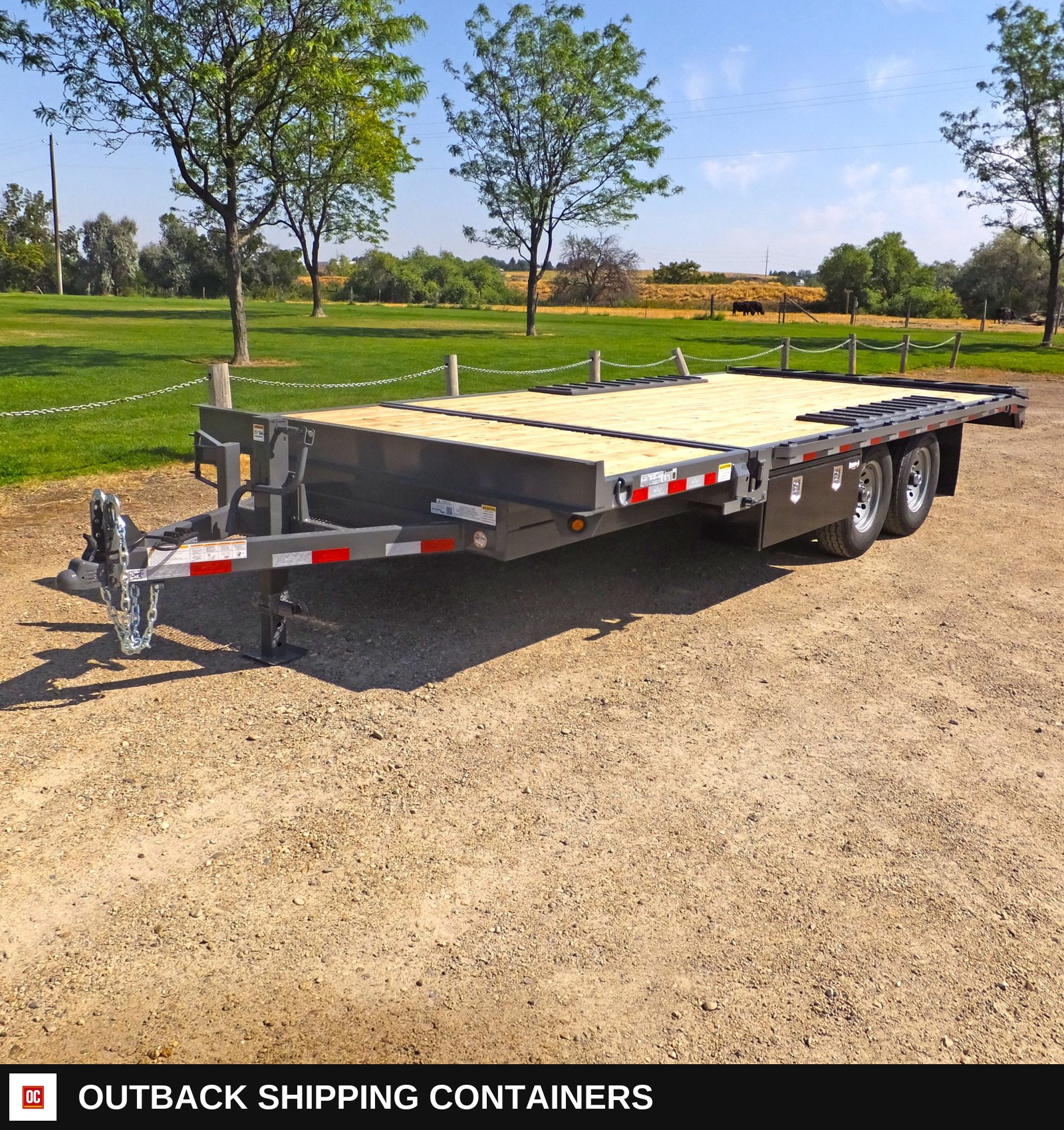

2024 Diamond C 7X24 20K Tilt Deck Equipment Trailer w/Spare Mount

About the 2024 Diamond C 7X24 20K Tilt Deck Equipment Trailer w/Spare Mount

The 2024 Diamond C 7X24 20K Tilt Deck Equipment Trailer w/Spare Mount is a new heavy equipment trailer prepared, inspected and road-tested by Outback Shipping Containers before dispatch. Built for daily commercial duty, it measures 7 ft x 24 ft. 2024 Diamond C 7X24 20K Tilt Deck Equipment TrailerWeights 2024 Diamond C 7X24 20K Tilt Deck Equipment Trailer for Sale Hauling heavy equipment gets simpler with this 2024 Diamond C 7X24 20K tilt deck equipment trailer, a new, engineered-beam hauler rated at a 20,000 lb GVWR with a 15,370 lb payload. The hydraulic-dampened tilt deck removes the need for separate ramps, letting you load skid steers, tractors, and machinery at a low, drive-on angle. Tilt Deck Loading Done Right The trailer combines an 8' stationary deck with a 16' hydraulic dampened tilt section, so the bed lowers smoothly to the ground and returns under control rather than slamming. That means safer, one-person loading of low-clearance equipment. The engineered beam frame with an 8"x10 lb I-beam tongue and 3" I-beam crossmembers on 16" centers gives it the backbone for repeated heavy cycles, while dual 10,000 lb torsion axles with electric drum brakes handle the stopping. Specifications When choosing a tilt trailer, confirm your equipment's ground clearance suits the tilt angle and that your load stays within the 15,370 lb payload. The adjustable coupler lets you dial in level towing, and the six D-rings provide solid tie-down points. On delivery, verify brake function and hydraulic cushion operation. Each unit is checked over, function-tested and released with complete title and VIN paperwork. Free standard delivery to the continental U.S. is included, and custom equipment packages are available on request.

Features & Inclusions

• • 2024 Diamond C, model HDT21024X82, new, black
• • Two 10,000 lb torsion straight axles with electric drum brakes
• • Engineered beam frame, 8"x10 lb I-beam tongue
• • 3" I-beam crossmembers on 16" centers
• • 8' stationary deck plus 16' hydraulic dampened tilt deck
• • 2" pressure-treated decking with Blackwood outer decking option
• • 2-5/16" 21,000 lb Demco EZ-Latch adjustable coupler
• • 12,000 lb drop-leg jack, HD V-tongue lid storage tool box
• • Six D-rings, 36" side step, 2"x3/8" rub rail with stake pockets
• • Radial tires, LED lighting, 14ga teardrop diamond plate fenders
• • GVWR 20,000 lbs, empty 4,630 lbs, payload 15,370 lbs

Specifications

Year

2024

Manufacturer

Diamond C

Condition

New

Length

24 ft

Width

7 ft

GVWR

20,000 lbs.

Empty / dry weight

4,630 lbs.

Payload

15,370 lbs.

Road compliance

DOT-compliant lighting, wiring and VIN documentation

Warranty

5-year structural (chassis/trailer); as-inspected on used units

Lead time

7–10 business days for in-stock units; 10–14 business days for customized builds

System Type

Gravity tilt with a hydraulic damper — no pump, no motor and no battery needed to tilt

How It Works

Release the deck lock and drive the machine onto the tilt section; as the weight moves past the pivot the deck tilts down to the ground, and back level as the load moves forward. A sealed hydraulic damper cylinder slows the movement so the deck lowers and returns smoothly instead of slamming

Power Required to Tilt

None — the movement comes from the load’s weight; the damper only controls speed

Deck Lock

Deck must be locked level before towing

Maintenance

Inspect the damper cylinder for leaks and the pivot points for wear; grease pivots per manufacturer schedule

Delivery method

Towed

Straight approach (min.)

At least 60 ft

Access width (min.)

At least 12 ft

Overhead clearance (min.)

At least 12 ft along the route

Drop zone / setup area

50 x 12 ft straight, level run to back in and unhitch

Delivery note

Delivered towed behind a tow vehicle; the driver backs it into position and unhitches.
